Power, it is already in the wall? #

If there is anything I ever learned, it is that someone else has already solved your problem, the tricky part is finding and applying it.

What can we do before my house goes on 🔥 #

Go look at you panel, find the breaker that connects to your homelab, and do this math.

(120 x <number on your breaker>) x .8

Boom, that is your max wattage you homelab should be rated for.

For the record, it technically isn’t. But your electrician will get very sad. 🙁

Mine is 20, so my max wattage is (120 x 20) x .8 = 1920

I like your funny words magic man #

Alright, you just calculated your maximum Running Watts, this defines what you can run your homelab at indefinitely before burning the wires in your walls.

If you had 15 on the breaker. It would have been 1440 watts, but you already calculated that. right?

What does my homelab use? #

Now, go into your homelab, google your hardware, stare at your power bricks, you need to find the following information.

  • If your computer only accepts an AC input
    • What is its max Watt rating?
  • If your computer/device has an external power brick.
    • What is its Volts and Amps?

Sort all this together

6 port Switch12560
24 port edgemax switch16-2525
minipc x5196114 / 570

Total it all up, my example shows us as 1315

Now, total up all your DC external power block devices. Mine is 715

We now know 3 out of 4 important numbers.

  • Your maximum energy bandwidth 1920
  • Your homelab’s maximum draw 1315
  • How many watts we can consolidate 715

Wait. Why are we doing everything by maximum usage? My homelab does not run at full power all of the time? - You, probably

This is how your (‘Merica) electrical code is written. It assumes you will be absolutely loony enough to run your heater, AC, Oven, Microwave, Dryer, Washer, Dog blanket and 3 space heaters at the same time.

Finding your average usage is more of a cost savings process than capacity planning for what we are doing. Your welcome to grab your Kill-A-Watt but we will not be using it.

Lets grab our handy notebook. 📓 #

Behold, the GRAPH

A simple underwhelming graph

As small as it looks. This is our master plan. I promise.

Label your graph #

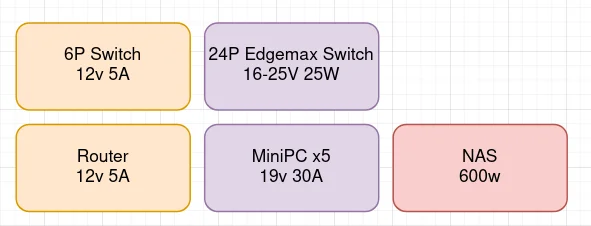

Label your devices #

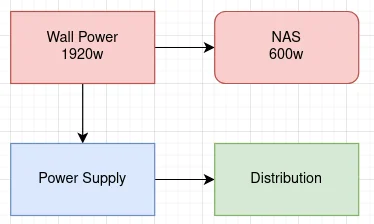

Label your Wall Power #

Wall powers

Separate your DC and AC devices #

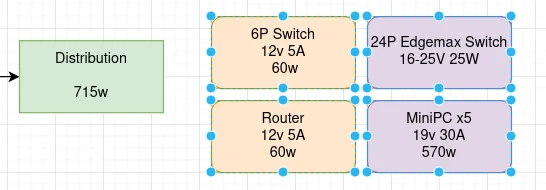

Determine your DC load #

DC load

Problem 1: The Power Supply #

Your power supply needs to be able to provide your homelab at full load. I am using a 1000w server power supply, but you could also use ATX power supplies, cheap amazon power supplies, or anything else you can find.

To find if your power supply can handle the load, make sure it has the right wattage listed for your predicted max load.

Problem 2: Distribution #


There are two kinds of distribution problems we need to solve.

Problem 2.1 End User #

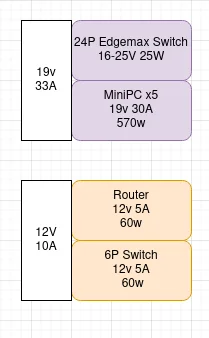

The end user, meaning your device, server, or branch networks, are going to have their own requirements on what voltage they are expecting.

If your end user voltage is different from your backhaul voltage. you will need to use either a buck or boost converter to adjust the voltage. I would recommend grouping these loads together to save parts.


Problem 2.2 Backhaul #

Keep the below in mind.

Wire size guide

In general, the higher your backhaul voltage, the smaller wires you can use for the same power, We will need this at its largest rating off of the power supply. But a way to reduce long large wires is to use a distribution box with fuses for your smaller branches.

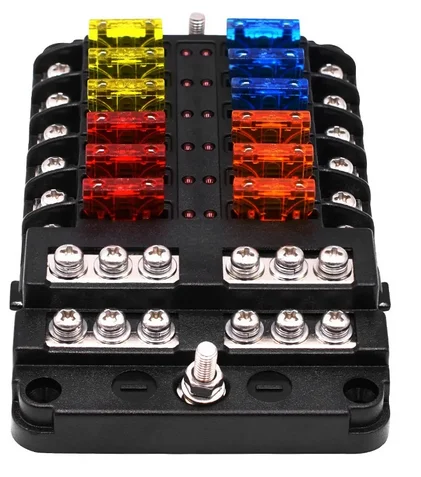

DC fuse block

We need the fuses to protect the wires during a fault. If we have a fault on underrated unfused wire. We have a 🔥 hazard. The wire will go hot, and melt.

This allows you to use more, but smaller wires, to power your loads. This is great for smaller setups, but not for large setups. 1000w at 12v is 90 amps, this requires large wires and fuses.

Problem 3 Connectors #

In short, Anderson powerpoles and xt30 are great for anything under 30 amps. XT60 is great for higher currents, XT90 is also a thing.

Implementation #

Thats up next…
